TKR5253B – Aluminum Steering Servo Horn (25T spline, M3 clamp, double hole) Futaba, Savox

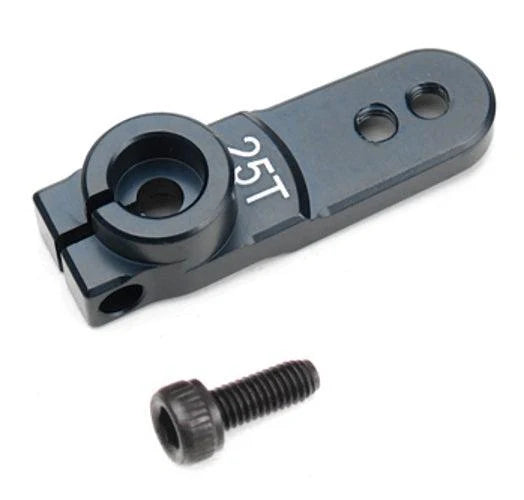

TKR5253B – Aluminum Servo Horn (25T spline, M3 clamp, double hole)

For: Futaba, Pro-Tek, Savox, Highest servos

The Tekno RC Aluminum Servo Horns were designed to minimize forces transmitted back to the servo spline.  It utilizes a bottom mount design that, as opposed to a top mount, lowers the leverage point.  This means your servos will be protected better to keep you in the race.

There are two mounting positions to fine tune your application.  A hefty M3 locking screw ensures the servo horn will never come loose again.  The M3 screw is also easy to tighten down compared to the smaller M2 screws that easily strip out on other servo horns.  Use screws: (M3x14mm flathead screw) for mounting the steering linkage to your Tekno RC vehicle.  Use thread locking compound on all metal-to-metal connections.

These were designed specifically for the Tekno RC line of vehicles, but they can be used in most other applications as well.

**We strongly recommend using the inside (short) mounting hole for use in Tekno RC vehicles.  This will make the steering response smoother and also protect your servo better.
